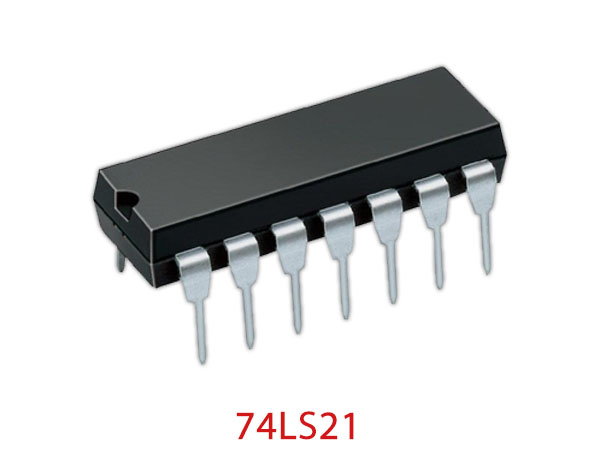

74LS21 Dual 4-input AND Gate
By David Joseph
The 74LS series of integrated circuits (ICs) was one of the most popular logic families of transistor-transistor logic (TTL) logic chips. 74LS series is a bipolar, low-power Schottky IC. 74LS21 Dual 4-input AND Gate contain two independent 4-input AND gates
74LS21 Features
- Two Independent AND Gates
- Standard Pin Configuration
- Fast Switching Times
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages
74LS21 Specifications
| Supply Voltage | 4.75 - 5.25Vdc |
| Maximum Clock Frequency | 40Mhz |
| Power Dissipation | 2mW/gate @100kHz |
| Minimum Output Current | 8mA |
| Propagation Delay | 10nS |
| Fan Out (TTL Loads) | 20 |

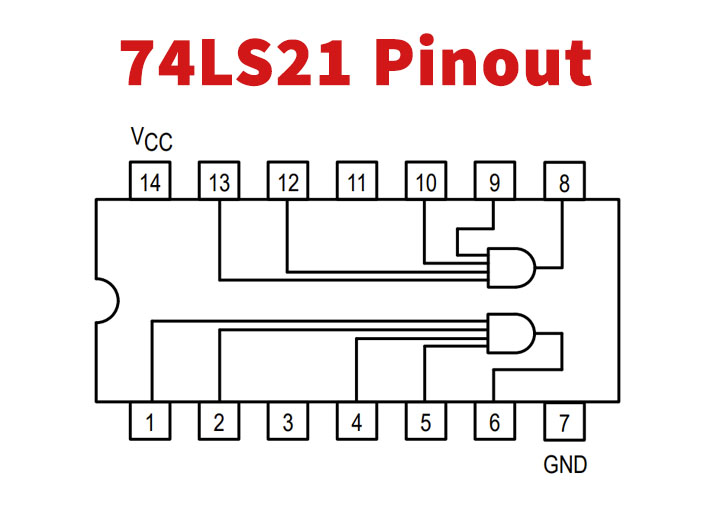

74LS21 Pinout Diagram
74LS21 Pin Description
| Pin No | Pin Name | Description |
| 1 | A1 | AND Gate 1 Input 1 |
| 2 | B1 | AND Gate 1 Input 2 |
| 3 | NC | NO Connection |
| 4 | C1 | AND Gate 1 Input 3 |
| 5 | D1 | AND Gate 1 Input 4 |
| 6 | X1 | AND Gate 1 Output |
| 7 | GND | Ground |
| 8 | X2 | AND Gate 2 Output |
| 9 | A2 | AND Gate 2 Input 1 |
| 10 | B2 | AND Gate 2 Input 2 |
| 11 | NC | No Connection |
| 12 | C2 | AND Gate 2 Input 3 |
| 13 | D2 | AND Gate 2 Input 4 |
| 14 | VCC | Positive Supply |
74LS21 Circuit
Applications
- Data transmission control in digital electronics.
- Alarm circuits.
74LS21 Alternative Equivalent
74LS08, 74LS09, 74LS11
Download 74LS21 Dual 4-input AND Gate Datasheet from the link given below.
