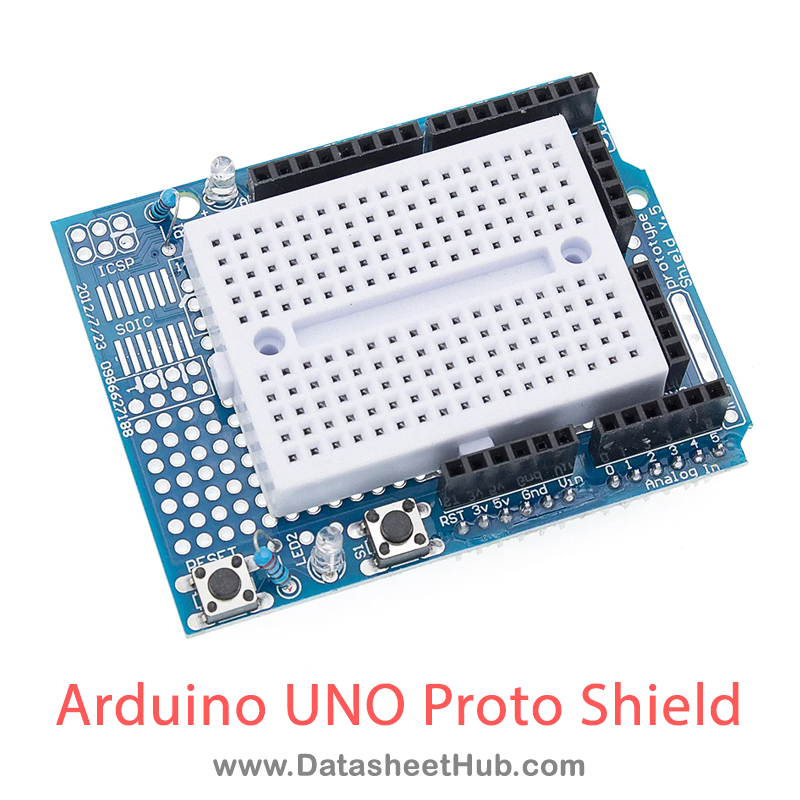

SYB-170 Mini Breadboard Arduino Proto Shield

This prototyping shield is the best out there (well, we think so, at least), and now is even better with Version R3 – updated for the most compatibility with just about all the Arduinos! It works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible Arduinos. Yun’s and Arduino Ethernets have a chunky Ethernet jack that gets in the way of stacking, you can use the stacking headers included and it will work, just doesn’t sit nice and flat.

Features

• It has a nice standard 0.1″x0.1″ prototyping grid with big pads
• Comes with Stacking headers and plain headers, choose whichever you want when soldering together
• An IC pattern for adding DIP ICs up to 20 pins
• Power rails down the middle and sides
• A reset button and an extra general-use button
• 2 3mm general-use LEDs, red and green, as well as 2 matching resistors
• A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer
• A surface-mount chip area for up to 14 SOIC-size parts
• Compatible with tiny breadboards
• Every pin is brought out!
• Gold plated pads
• 2 x 0.1uF capacitors on either side for extra power stability

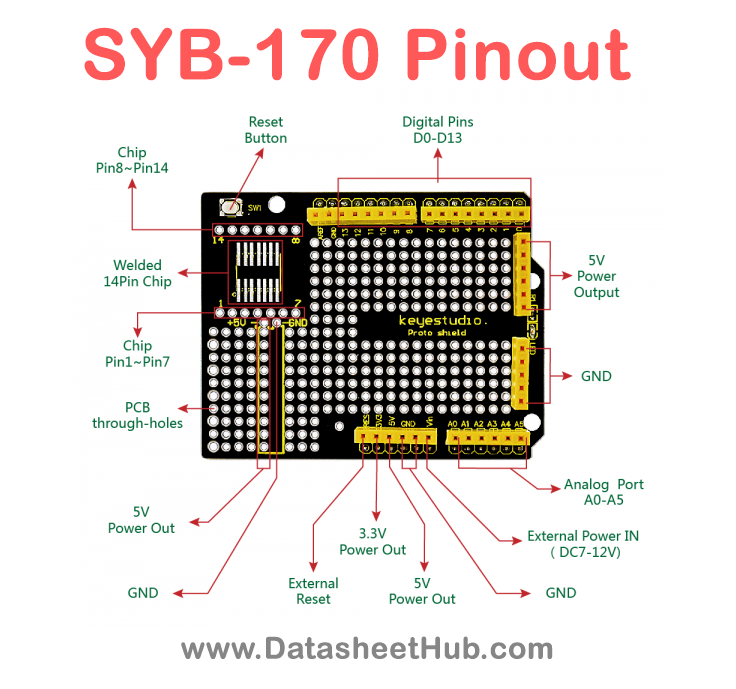

Pinout

Specifications

Application

• Prototyping and testing electronic circuits using Arduino UNO
• Creating and experimenting with small-scale projects and prototypes
• Building and testing sensors and input/output modules
• Teaching and learning electronics and programming concepts
• Designing and implementing basic robotics projects

Datasheet SYB-170 Mini Breadboard

Download the Datasheet for SYB-170 Mini Breadboard from the link given below.
